What’s the Difference — and Which One Should You Be Using?
When it comes to TIG welding, most welders focus on machines, torches, and tungsten—but one of the most overlooked components in the setup is the collet. That small copper part inside your torch plays a critical role in how securely your tungsten is held and how consistent your arc stays.

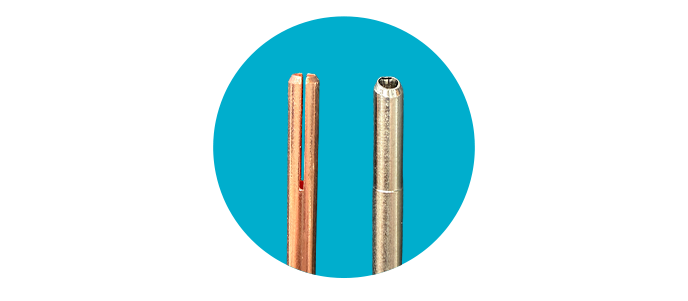

Two common options are regular (standard) TIG collets and wedge collets. While they perform the same basic job, they work very differently—and those differences matter more than most people realize.
What Is a Regular (Standard) TIG Collet?
A regular TIG collet is the traditional, split-style collet that has been used for decades.
How it works
-
Made from soft copper
-
Has longitudinal slots (splits)
-
Tightening the back cap compresses the collet inward, gripping the tungsten
Pros
-
Simple and inexpensive
-
Widely available
-
Works well for general TIG welding
Cons
-
Can twist, deform, or wear out over time
-
Grip strength depends heavily on proper back-cap tension
-
Tungsten can slip if the collet is worn, overheated, or slightly loose
-
Less consistent when running long tungsten stick-out
Common issue:
Over time, regular collets can become twisted or egg-shaped, especially after repeated heat cycles. Once that happens, tungsten alignment and arc stability suffer.
What Is a Wedge Collet?
A wedge collet is a more modern, self-locking design built to solve many of the problems associated with standard collets.
How it works
-
Uses a tapered wedge geometry instead of splits
-
As the back cap tightens, the collet is pulled forward into a matching taper
-
This creates a self-locking grip on the tungsten
Pros
-
Much stronger, more consistent grip
-
Greatly reduces tungsten slippage
-
Maintains alignment under heat and vibration
-
Excellent for long stick-out and precision work
-
Longer service life than standard collets
Cons
-
Slightly higher cost
-
Must be matched correctly to torch size and tungsten diameter
Side-by-Side Comparison
| Feature | Regular Collet | Wedge Collet |
|---|---|---|
| Grip method | Compression (split copper) | Tapered wedge lock |
| Slip resistance | Moderate | High |
| Heat resistance | Average | Better |
| Arc consistency | Good | Excellent |
| Wear over time | Can twist or deform | Very minimal |
| Best use | General TIG welding | Precision, pipe, long stick-out |
Which One Should You Use?
Use a regular collet if:
-
You’re doing general fabrication
-
Short tungsten stick-out
-
Cost and simplicity are the priority
Use a wedge collet if:
-
You weld pipe or tight joints
-
You run long tungsten stick-out
-
Tungsten movement ruins your welds
-
You want better arc consistency and reliability
The Bottom Line
Both collets will weld—but they don’t perform the same.
A regular TIG collet gets the job done, but it relies on compression and soft copper, which can twist, wear, and lose grip over time. A wedge collet, on the other hand, uses mechanical geometry to lock the tungsten in place, giving you a stronger hold, better alignment, and more consistent results—especially in demanding applications.
For welders who care about precision, repeatability, and reliability, the wedge collet is a noticeable upgrade.
